OEM Service Rechargeable Li-ion Battery Pack 3.6V 5200mAh 18650 cell type

Normal Voltage	3.6V
Nominal Capacity	5200mAh
Max Charge Voltage	4.2V
Discharge cut-off voltage	2.8V
Standard Charge	0.2C
Standard Discharge	0.2C
Max. Charge Current	0.2C（stand charge） 2A Max (rapid charge)
Max. Discharge Current	2A
Battery Dimension	L:72mm Max W:38mm Max T:20mm Max

Normal Voltage	3.6V
Nominal Capacity	5200mAh
Max Charge Voltage	4.2V
Discharge cut-off voltage	2.8V
Standard Charge	0.2C
Standard Discharge	0.2C
Max. Charge Current	0.2C（stand charge） 2A Max (rapid charge)
Max. Discharge Current	2A
Battery Dimension	L:72mm Max W:38mm Max T:20mm Max

Detailed Product Description

Storage condition:

-20～60℃, 60% RH: 1month

-20～45℃, 60% RH: 3month

-20～25℃, 60% RH: 12month

Storage in a 50% charged state;

(Do NOT storage at fully charged state; Over long storage periods batteries should be cycled every 90 days, The method is to do a charge-discharge cycle with standard method. (Under normal storage conditions, long time storage can lead to decrease of capacity and cycle life, it will be caused more decreasing of the capacity and the cycle life if the storage condition out of the normal condition.)

Cycle Life: discharge capacity of1000th cycle≥80%

Charge: 0.5C constant current charge to 4.2V followed by 4.2 V constant voltage charge to cut-off current ≤ 0.01C

Discharge: 1C constant current discharge to cut-off voltage ≤ 2.75V.

Storage condition:

-20～60℃, 60% RH: 1month

-20～45℃, 60% RH: 3month

-20～25℃, 60% RH: 12month

Storage in a 50% charged state;

Cycle Life: discharge capacity of1000th cycle≥80%

Charge: 0.5C constant current charge to 4.2V followed by 4.2 V constant voltage charge to cut-off current ≤ 0.01C

Discharge: 1C constant current discharge to cut-off voltage ≤ 2.75V.

Previous: NO MORE

Next: 14.4V 26.8Ah Rechargeable Lithium Ion Battery Pack 18650CP cell type

ㅤRelated Products

7S4P / BAKTH-18650-7S4P-2-

7S4P / BAKTH-18650-7S4P-2

Tags: Industrial Application, Portable Devices Meet IEC62133 / UN38 3 certification

2S1P / NCM18490-2S1P-

2S1P / NCM18490-2S1P

Tags: Industrial Application, Hair Clipper Devices Meet IEC62133 / UN38 3 certification

1S1P / BAKTH-14500-1S-3W-

1S1P / BAKTH-14500-1S-3W

1S2P / BAKTH-763448A-1S2P-2M-

1S2P / BAKTH-763448A-1S2P-2M

Tags: 763448A 1S2P 2M, 763448A 3.7 V 2600 mAh 9.62 Wh, BAKTH 763448A, BAKTH Shenzhen, Industrial Application, lithium- ion battery 3.7v, Lithium-Ion Polymer Battery, Medical Devices, Portable Devices, Shenzhen BAKTH Technology Meet IEC62133 / UN38 3 ...

BAKTH-18650-4S2P-14M-

BAKTH-18650-4S2P-14M

Tags: 14PINs connector, 18650 lithium battery, BAKTH Shenzhen, BAKTH-18650-4S2P-14M Lithium 18650 14.4 V 6400 mAh 92.16 Wh, lithium- ion battery, Medical Devices, Shenzhen BAKTH Technology Meet IEC62133 / UN38 3 certification

BAKTH-18650-6S1P-2-

BAKTH-18650-6S1P-2

Tag: Medical Devices Meet IEC62133 / UN38 3 certification

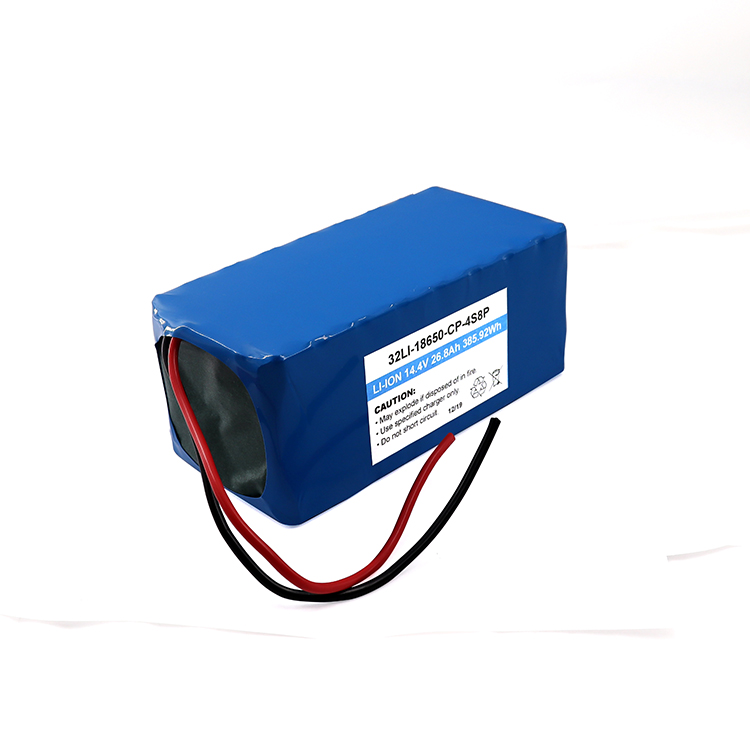

14.4V 26.8Ah Rechargeable Lithium Ion Battery Pack 18650CP cell type-32LI-18650-CP-4S8P
