High Performance - 3.7V voltage with 800mAh capacity (2.96Wh energy) provides stable and long-lasting power
Premium Li-Polymer Technology - Lighter, safer and more stable than traditional Li-ion batteries
Ultra Slim Design - Flexible form factor ideal for space-constrained devices
Multiple Protections - Built-in safeguards against overcharge, over-discharge and short circuit
Wide Compatibility - Perfect replacement for various electronics including:
Bluetooth headsets
Digital cameras
Portable medical devices
IoT and smart home devices
GPS trackers
|
Nominal voltage
|
3.7V (average voltage at 0.2C discharge)
|
|
Nominal Capacity
|
800mAh
|
|
Charge voltage
|
4.20 ±0.05V
|
|
Standard charge current
|
0.2C (10℃~20℃)
|
|
Charging Method
|
CC/CV
|
|
Max continuous discharge current
|
1C
|
|
Max peak discharge current
|
0.5C
|
|
Discharge cut-off voltage
|
3.0V (limited by PCB)
|
|
Working temperature
|
Charge: 0 ~ +45℃
|
|
Discharge: -20 ~ +60 ℃ <recommend 0~45℃>
|
|
|
Weight
|
Approx 20g
|
|
Battery pack dimension
|
5.8*34.7*43.5mm<±0.2mm>
|
1. High energy density in compact size
2. Consistent performance with low self-discharge
3. Custom configurations available (connectors, protection circuits)
4. Strict quality control for reliability and safety
Ideal for OEMs and manufacturers needing dependable power solutions for small electronics. Contact us for bulk pricing and custom specifications!
Shenzhen BAKTH Technology Co., Ltd. was established in 2002. For 21 years, it has been dedicated to battery pack assembly and PCM/BMS design and production. It has a 5,000-square-meter self-owned factory equipped with automated production lines and SMT assembly lines.


High Performance - 3.7V voltage with 800mAh capacity (2.96Wh energy) provides stable and long-lasting power
Premium Li-Polymer Technology - Lighter, safer and more stable than traditional Li-ion batteries
Ultra Slim Design - Flexible form factor ideal for space-constrained devices
Multiple Protections - Built-in safeguards against overcharge, over-discharge and short circuit
Wide Compatibility - Perfect replacement for various electronics including:
Bluetooth headsets
Digital cameras
Portable medical devices
IoT and smart home devices
GPS trackers
|
Nominal voltage
|
3.7V (average voltage at 0.2C discharge)
|
|
Nominal Capacity
|
800mAh
|
|
Charge voltage
|
4.20 ±0.05V
|
|
Standard charge current
|
0.2C (10℃~20℃)
|
|
Charging Method
|
CC/CV
|
|
Max continuous discharge current
|
1C
|
|
Max peak discharge current
|
0.5C
|
|
Discharge cut-off voltage
|
3.0V (limited by PCB)
|
|
Working temperature
|
Charge: 0 ~ +45℃
|
|
Discharge: -20 ~ +60 ℃ <recommend 0~45℃>
|
|
|
Weight
|
Approx 20g
|
|
Battery pack dimension
|
5.8*34.7*43.5mm<±0.2mm>
|
1. High energy density in compact size
2. Consistent performance with low self-discharge
3. Custom configurations available (connectors, protection circuits)
4. Strict quality control for reliability and safety
Ideal for OEMs and manufacturers needing dependable power solutions for small electronics. Contact us for bulk pricing and custom specifications!
Shenzhen BAKTH Technology Co., Ltd. was established in 2002. For 21 years, it has been dedicated to battery pack assembly and PCM/BMS design and production. It has a 5,000-square-meter self-owned factory equipped with automated production lines and SMT assembly lines.



Technical Specifications: Chemistry: Li-pol Nominal Voltage: 3.7V Nominal Capacity: 1850mAh Nominal Energy: 6.85Wh Max Charge Voltage: 4.2V Discharge cut off voltage: 2.75V Dimension: about 10.5*34.5*53 mm Weight: about 40g The BAKTH-103450P-...

Technical Specifications: Chemistry: Li-ion Configuration: 2S Nominal Voltage: 7.4V Nominal Capacity: 2400mAh Max Charge Voltage: 8.4V Discharge cut off voltage: 5.6V Standard charge current: 0.2C Max Charge Current: 1C Discharging Temperatur...

Technical Specifications: Chemistry: Li-pol Nominal Voltage: 3.7V Nominal Capacity: 950mAh Nominal Energy: 3.52 Wh Max Charge Voltage: 4.2V Discharge cut off voltage: 2.75V Dimension: about 5.5*35*53 mm Weight: about 15g The LP-523450-1S-3 is...

Product Overview The LP-443440 is a high-discharge-rate lithium-ion polymer battery designed for consumer electronics requiring stable power delivery under moderate load conditions. Key specifications include: Voltage : 3.7V (nominal), with a fl...

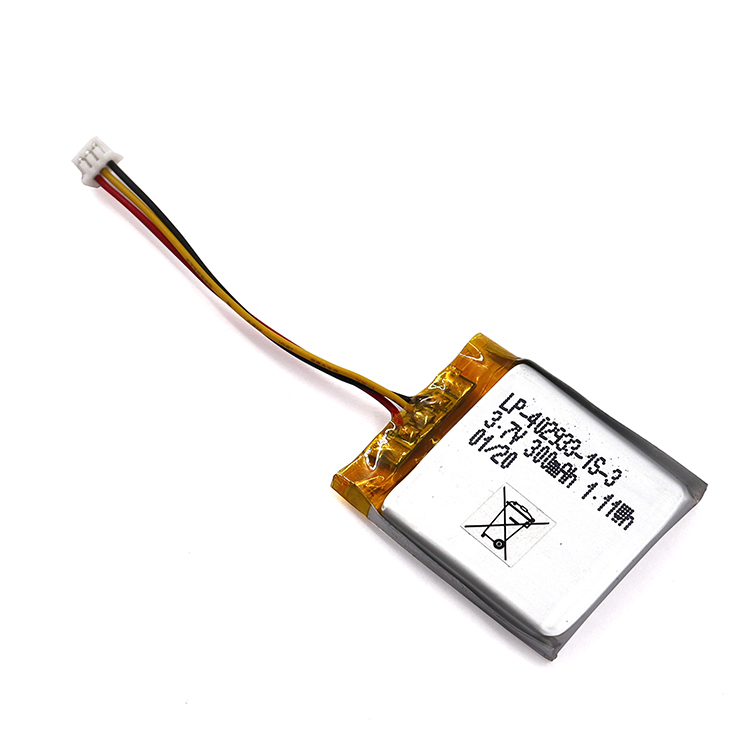

Rechargeable Li Pol Battery LP-402933-1S-3 3.7V 300mAh Lithium Ion Polymer Battery Packs Product Overview The LP-402933-1S-3 is a compact lithium-ion polymer (Li-Po) battery pack designed for low-power wearable devices, IoT sensors, or medical inst...
