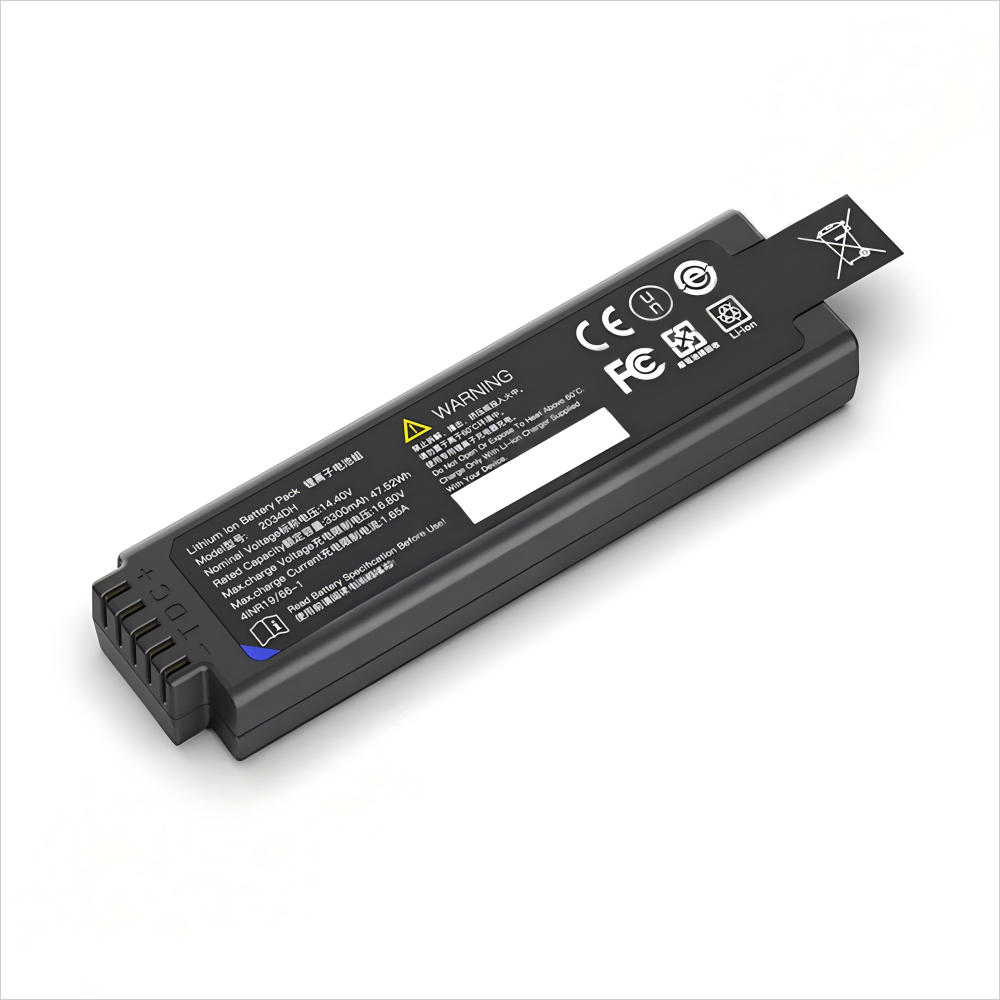

BAKTH-2047FH Detachable & SMBus-Compliant Smart Battery Pack With Global Certifications
Product Description
The BAKTH-2047FH leverages Panasonic cells, renowned for their industry-leading energy density and stability. This ensures your apparatus operates at peak performance throughout extended examination sessions. With the ability to retain up to 80% of its initial capacity after 500 cycles, the BAKTH-2047FH offers longevity that matches its power.
Specifications
| Nominal voltage |
7.2V |
Nominal capacity | 10350mAh |
| Max discharge current | 10A |
|
500 cycles ＞80% |
| Max charge current | 7.24A | Max charge voltage | 8.4V |
| Storage temperature |
-20°C~50°C(Maximum) -20°C~25°C(Recommend) |
Internal resistance |
≤100mΩ |
| Weight | 150±10g | Dimensions |
Length 150.0mm ± 0.3mm Width 58.5mm ± 0.3mm Thickness 22.0mm ± 0.3mm |
| Operating temperature |
0-50℃(Charge) -20-60℃(Discharge) |

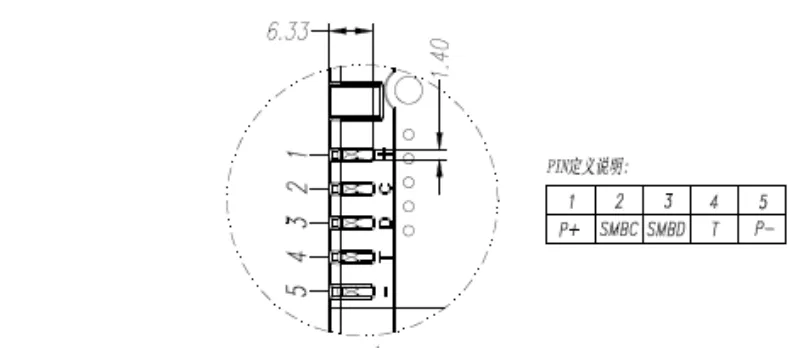

Interface |  |
Key Features
Safety is paramount in medical devices, and the 2047FH doesn’t compromise:
- 2S3P Standard Li-ion Battery Pack
- Detachable Design
- Global Safety and Transport Certified
- SMBus V1.1 Compliant Smart Battery
- Integrated LED Battery Indicator
- Multiple safety redundancy design for fail-safe operation
- Comprehensive protection against over-voltage, over-current, and reverse connection
- Temperature monitoring capability for the host device
- Worldwide approvals and certifications, including CE/FCC/IEC62133/UN38.3/PSE and UKCA
User-Friendly Design
We’ve prioritized ease of use and maintenance:
- 5-pin blade connectors for secure connections
- Easy-to-disassemble design for simple maintenance
- Compatible with the CH047D/CH4040/CH40 charger for convenient recharging
Intelligent Power Management
The 2047FH isn’t just a battery; it’s a smart power solution:
- Multiple product profiles ensure high reliability and adaptability
- Power visualization features for at-a-glance status checks
- Reliable structural design for durability in clinical settings
Global Compliance and Availability
- Certified for use worldwide, meeting international safety standards
- No development, mill, or certification fees
- Stock readily available with no minimum order quantity (MOQ) limit
The 2047FH Standard Battery Pack represents the pinnacle of portable power solutions for apparatuss. Its combination of advanced features, robust safety measures, and long-lasting performance make it the go-to choice for medical professionals requiring reliable and high-performance power sources.
Choose the 2047FH to ensure your apparatuss are always ready for critical examinations, providing the reliability and performance you need to deliver the best care possible.
Application
Portable equipment, Industry and medical field.
Product Description
The BAKTH-2047FH leverages Panasonic cells, renowned for their industry-leading energy density and stability. This ensures your apparatus operates at peak performance throughout extended examination sessions. With the ability to retain up to 80% of its initial capacity after 500 cycles, the BAKTH-2047FH offers longevity that matches its power.
Specifications
| Nominal voltage |
7.2V |
Nominal capacity | 10350mAh |
| Max discharge current | 10A |
|
500 cycles ＞80% |
| Max charge current | 7.24A | Max charge voltage | 8.4V |
| Storage temperature |
-20°C~50°C(Maximum) -20°C~25°C(Recommend) |
Internal resistance |
≤100mΩ |
| Weight | 150±10g | Dimensions |
Length 150.0mm ± 0.3mm Width 58.5mm ± 0.3mm Thickness 22.0mm ± 0.3mm |
| Operating temperature |
0-50℃(Charge) -20-60℃(Discharge) |
Interface | |
Key Features
Safety is paramount in medical devices, and the 2047FH doesn’t compromise:
- 2S3P Standard Li-ion Battery Pack
- Detachable Design
- Global Safety and Transport Certified
- SMBus V1.1 Compliant Smart Battery
- Integrated LED Battery Indicator
- Multiple safety redundancy design for fail-safe operation
- Comprehensive protection against over-voltage, over-current, and reverse connection
- Temperature monitoring capability for the host device
- Worldwide approvals and certifications, including CE/FCC/IEC62133/UN38.3/PSE and UKCA
User-Friendly Design
We’ve prioritized ease of use and maintenance:
- 5-pin blade connectors for secure connections
- Easy-to-disassemble design for simple maintenance
- Compatible with the CH047D/CH4040/CH40 charger for convenient recharging
Intelligent Power Management
The 2047FH isn’t just a battery; it’s a smart power solution:
- Multiple product profiles ensure high reliability and adaptability
- Power visualization features for at-a-glance status checks
- Reliable structural design for durability in clinical settings
Global Compliance and Availability
- Certified for use worldwide, meeting international safety standards
- No development, mill, or certification fees
- Stock readily available with no minimum order quantity (MOQ) limit
The 2047FH Standard Battery Pack represents the pinnacle of portable power solutions for apparatuss. Its combination of advanced features, robust safety measures, and long-lasting performance make it the go-to choice for medical professionals requiring reliable and high-performance power sources.
Choose the 2047FH to ensure your apparatuss are always ready for critical examinations, providing the reliability and performance you need to deliver the best care possible.
Application
Portable equipment, Industry and medical field.
Detailed Product Description
no data
