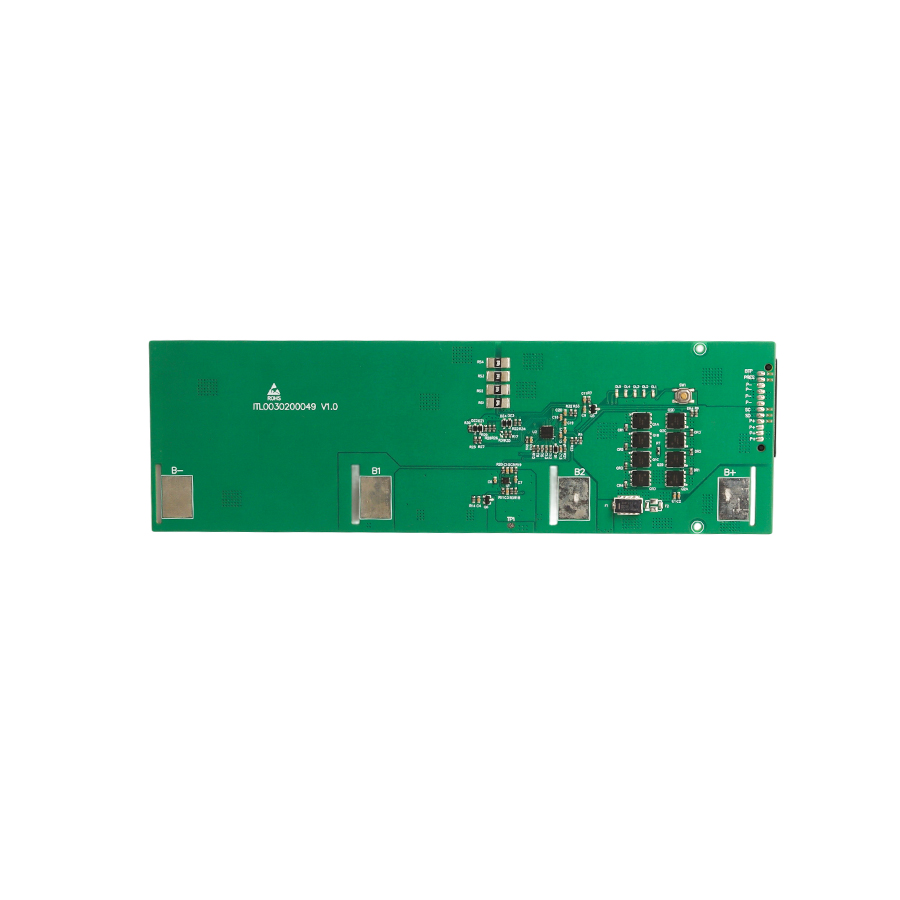

3S 8A Lithium Battery Smart Protection Board (SMBUS-Compatible) for Energy Storage Applications
Product Overview
The 3S 8A Lithium Battery Smart Protection Board (SMBUS-Compatible) is designed for reliable energy storage applications, featuring robust temperature adaptability with a discharge range of -20°C to 60°C and a charge range of 0°C to 45°C (adjustable). This high-efficiency board integrates multi-tiered protection including overcharge, over-discharge, short-circuit, and overcurrent safeguards while supporting real-time battery status monitoring via SMBUS communication.
Key Specifications
Model Number: BAKTH-0030100039-01
Series Supported: 3S
Continuous Discharge Current: 8A
Balancing Type: Active/Passive (Optional)
Overcharge Detection: 4.230V±0.050V (Adjustable)
Overdischarge Detection: 2.800V±0.0250V (Adjustable)
Dimensions: 64.64 × 38.35 × 2.83 mm
Certification: IEC62133
Key Features
- SMBUS communication protocol for real-time battery status feedback (SOC, SOH, temperature)
- Comprehensive protection: OV, UV, OC, SC, OT with balancing function
- Active balancing support to extend battery pack life and improve consistency
- Modular design for easy integration in industrial and solar applications
- Adjustable protection parameters for customized solutions
Technical Specifications
| Parameter | Value |
|---|---|
| Over Current Discharge | 9.0A±0.5A (Adjustable) |
| Over Current Charge | 8.0A±0.5A (Adjustable) |
| Discharging Temperature | -20~60℃ (Adjustable) |
| Charge Temperature | 0~45℃ (Adjustable) |
Application Scenarios
- Energy Storage Systems (ESS)
- Electric Power Tools
- Home Solar Battery Systems
- Drones and DIY Custom Li-ion Battery Packs
Warranty & Support
- 12-month warranty with lifetime technical support
- 100% tested before shipment for safety and reliability
- Dedicated account manager and technical support with 48-hour response
- Customization options available
Product Overview
The 3S 8A Lithium Battery Smart Protection Board (SMBUS-Compatible) is designed for reliable energy storage applications, featuring robust temperature adaptability with a discharge range of -20°C to 60°C and a charge range of 0°C to 45°C (adjustable). This high-efficiency board integrates multi-tiered protection including overcharge, over-discharge, short-circuit, and overcurrent safeguards while supporting real-time battery status monitoring via SMBUS communication.
Key Specifications
Model Number: BAKTH-0030100039-01
Series Supported: 3S
Continuous Discharge Current: 8A
Balancing Type: Active/Passive (Optional)
Overcharge Detection: 4.230V±0.050V (Adjustable)
Overdischarge Detection: 2.800V±0.0250V (Adjustable)
Dimensions: 64.64 × 38.35 × 2.83 mm
Certification: IEC62133
Key Features
- SMBUS communication protocol for real-time battery status feedback (SOC, SOH, temperature)
- Comprehensive protection: OV, UV, OC, SC, OT with balancing function
- Active balancing support to extend battery pack life and improve consistency
- Modular design for easy integration in industrial and solar applications
- Adjustable protection parameters for customized solutions
Technical Specifications
| Parameter | Value |
|---|---|
| Over Current Discharge | 9.0A±0.5A (Adjustable) |
| Over Current Charge | 8.0A±0.5A (Adjustable) |
| Discharging Temperature | -20~60℃ (Adjustable) |
| Charge Temperature | 0~45℃ (Adjustable) |
Application Scenarios
- Energy Storage Systems (ESS)
- Electric Power Tools
- Home Solar Battery Systems
- Drones and DIY Custom Li-ion Battery Packs
Warranty & Support
- 12-month warranty with lifetime technical support
- 100% tested before shipment for safety and reliability
- Dedicated account manager and technical support with 48-hour response
- Customization options available
Detailed Product Description
