Professional-Grade Protection for High-Voltage 10S Battery Packs

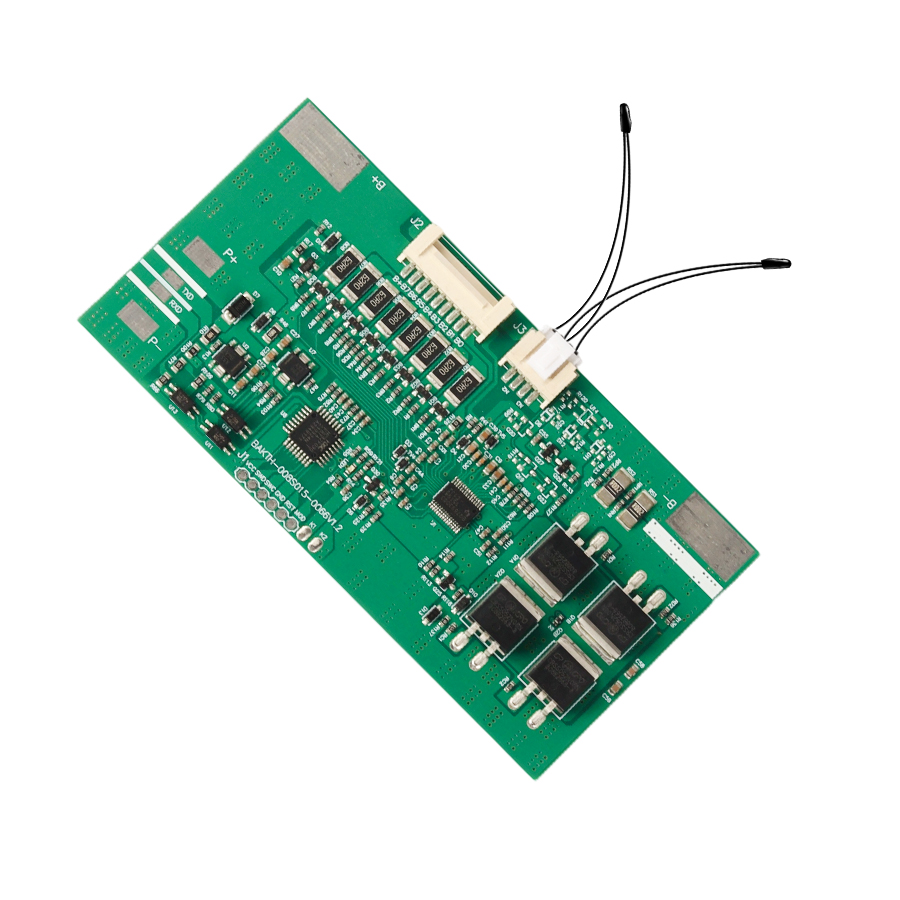

The BAKTH-010S020A-0048-01 is an advanced 10-series (10S) Battery Management System (BMS) engineered to deliver maximum safety, longevity, and reliability for 36V lithium-ion and lithium-polymer battery packs. This robust protection board integrates comprehensive circuit protection with precise cell balancing, making it the ideal cornerstone for high-performance applications where power stability and battery health are non-negotiable.

By meticulously monitoring and managing each cell, this BMS prevents dangerous operating conditions, ensures balanced charging, and significantly extends the overall lifecycle of your battery investment.

Key Features & Technical Advantages:

• Comprehensive Protection Suite: Provides multi-layered safety to safeguard your battery pack and end-users:

  • Over-Charge Protection: Cuts off the charging current when any cell's voltage becomes excessive, preventing damage and potential thermal hazards.

  • Over-Discharge Protection: Disconnects the load to prevent deep discharging, which can cause irreversible capacity loss and cell failure.

  • Over-Current Protection (OCP): Shields the battery and connected device from the dangers of excessive current draw.

  • Short-Circuit Protection: Offers immediate shutdown in case of a short circuit, ensuring system integrity and safety.

• Precision Passive Balancing: Equipped with a built-in balancing circuit that equalizes the voltage across all ten cells during the charging process. This critical function maximizes the usable capacity of the entire pack, promotes uniform cell aging, and is essential for maintaining peak performance over time.

• High-Voltage 10S Configuration: Expertly calibrated for 10-series battery chains, managing a nominal voltage of 36V and a full charge voltage of 42V.

• Robust 20A Discharge Current: Supports a substantial continuous discharge current of 20A, making it suitable for demanding medium-to-high-power applications such as light electric vehicles and power tools.

• High-Quality & Reliable Design: Manufactured with premium-grade components on a durable PCB, ensuring stable operation, low power consumption, and long-term durability in challenging environments.
